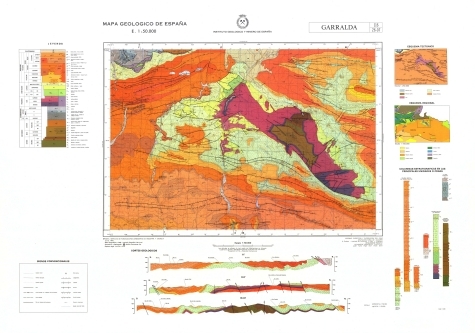

Geological Map of Spain. Scale 1:50.000 - Sheet 116 - GARRALDA
The sheet 116 (GARRALDA) of the National Geological Map (MAGNA), was made in 1978 and published in 2008 by the Geological Survey of Spain. It is distributed at scale 50000. The geological map shows the nature of materials (rocks and sediments) that appear on the surface, their spatial distribution and geometric relationships between the different cartographic units represented.
A geological mapping unit is the grouping of one or more lithologies with common age range, which is represented on the map at a scale or defined resolution. Each mapping unit, and the different geological structures, is represented on the map with a symbolism itself. The representation of these units on the topographic base map provides some three-dimensional information that is completed with other geological data and geological sections, stratigraphic profiles, polls, etc. The map legend is a pictogram representing the spatial relationship of the different mapping units (chronology, overlapping, geometric relationship, lateral facies changes, etc.). It also includes structural, hydrogeological and geological location of the sheet within the regional schemes.
Since 1991, the Geological Map Series MAGNA is made inseparably with the geomorphological map on the same scale. This map incorporates everything on the surface geology and provides a structured and accurate information of the land forms. It is organized on the basis of morphogenesis and morphocronology incorporated the map using the corresponding chronostratigraphic column included in a table / legend inspired by the geological map. The forms, erosional and depositional, are represented on the map by individualized by symbols and patterns of color and surface deposits or lithological formations elements that provide information.
For each sheet of the series MAGNA there is an explanatory report published, edited and in digital format.
The digital information is stored in coverage and Shape format (ESRI). There is a guide that describes the physical structure of the digital information and its codification.
Simple
- Alternate title
-
MAGNA - Sheet 116 - GARRALDA
- Date (Creation)
- 1978-01-01
- Date (Publication)
- 2008-01-01
- Date (Revision)
- 2008-01-01
- Edition
-
2ª Serie
- Edition date
- 1972-01-01
- Citation identifier
-
http://www.igme.es
/
20116-1
Identificación del Instituto Geológico y Minero de España. Centro de Documentación 1979-01-01
- Presentation form
- Hardcopy map
- Presentation form
- Hardcopy document
- Presentation form
- Digital document
- Presentation form
- Digital map
- Purpose
-
The Geological Map of Spain (MAGNA) 1: 50,000 scale (including geomorphological map) is part of the infrastructure of geoscientific knowledge for socio-economic development. Supports activities such as hydro-geological and mineral resources, public works, agriculture, land use, the environment territorial planning, natural hazards and generally any action on the physical environment that supports the decision-making actions on the territory.
- Credit
-
The IGME is the institutional author of the series and its largest funder. The leaves are made by both IGME own staff and specialized service companies.
- Status
- Completed
- Point of contact
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Author
- Maintenance and update frequency
- Irregular
-
Tesauro IGME
-
-
Geology
-
lithostratigraphy
-
Chronostratigraphy
-
Tectonics
-
faults
-
Spain
-
Boundary
-
Fossils
-
Lithology
-
Folds
-
Rocks
-
Metamorphic rocks
-
Igneous rocks
-
Sedimentary rocks
-
Mineral indicators
-
Wells
-
- Keywords
-
- Specific usage
-
The Geological Map of Spain (MAGNA) 1: 50,000 scale, is used for all activities related to the hydrogeological and mineral resources, public works, agriculture, land use, land use planning, environment, risks natural and generally any action on the physical environment that supports the decision-making actions on the territory is a user of this mapping.
- User contact info
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Access constraints
- Other restrictions
- Other constraints
- No limitations on public access.
- Use constraints
- Other restrictions
- Other constraints
-
LICENSE OF USE: Conditions of public use and dissemination of information for the reuse of data http://www.igme.es/Ayuda/CondiUso.html
- Title
-
Geological Map of Spain 1:50.000 scale, MAGNA
- Date (Creation)
- 1972-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Aggregate Datasetindentifier
- http://www.igme.es / ESPIGMEMAGNA502010072320000
- Association Type
- Larger work citation
- Title
-
Geological Map of Spain. Scale 1:50.000 - Sheet 143 - NAVASCUES
- Date (Creation)
- 1972-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Aggregate Datasetindentifier
- http://www.igme.es / 20143-1
- Association Type
- Cross reference
- Title
-
Geological Map of Spain. Scale 1:50.000 - Sheet 142 - AOIZ
- Date (Creation)
- 1972-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Aggregate Datasetindentifier
- http://www.igme.es / 20142-1
- Association Type
- Cross reference
- Title
-
Geological Map of Spain. Scale 1:50.000 - Sheet 141 - PAMPLONA
- Date (Creation)
- 1972-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Aggregate Datasetindentifier
- http://www.igme.es / 20141-1
- Association Type
- Cross reference
- Title
-
Geological Map of Spain. Scale 1:50.000 - Sheet 117 - OCHAGAVIA
- Date (Creation)
- 1972-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Aggregate Datasetindentifier
- http://www.igme.es / 20117-1
- Association Type
- Cross reference
- Title
-
Geological Map of Spain. Scale 1:50.000 - Sheet 115 - ANSOAIN
- Date (Creation)
- 1972-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Aggregate Datasetindentifier
- http://www.igme.es / 20115-1
- Association Type
- Cross reference
- Title
-
Geological Map of Spain. Scale 1:50.000 - Sheet 91B - MENDI-ZAR
- Date (Creation)
- 1972-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Aggregate Datasetindentifier
- http://www.igme.es / 2091B-1
- Association Type
- Cross reference
- Title
-
Geological Map of Spain. Scale 1:50.000 - Sheet 91 - VALCARLOS
- Date (Creation)
- 1972-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Aggregate Datasetindentifier
- http://www.igme.es / 20091-1
- Association Type
- Cross reference
- Title
-
Geological Map of Spain. Scale 1:50.000 - Sheet 90 - SUMBILLA
- Date (Creation)
- 1972-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Point of contact
- Aggregate Datasetindentifier
- http://www.igme.es / 20090-1
- Association Type
- Cross reference
- Spatial representation type
- Vector
- Denominator
- 50000
- Language
- Spanish; Castilian
- Character set
- 8859 Part 1
- Topic category
-
- Geoscientific information
))
- Supplemental Information
-
Explanatory report
Implementing rules
Microscopic studies
Datings
- Title
-
European Petroleum Surgey Group
- Date (Creation)
- 1986-01-01
- Unique resource identifier
- 23030
- Unique resource identifier
- EPSG:4258
- Distribution format
-
Name Version Mapa digital: SHP - ArcView ShapeFile
-
Mapa digital: PDF - Portable Document Format
-
Mapa digital: ARCC - Coverage of Arc-Info
-
Mapa digital: ARCE - ARC/INFO Export format
-
Mapa en papel
-
Servicio web: WMS - Web Map Service
-
Mapa digital: JPG - Joint Photographic Experts Group
-
Mapa Digital: KML - Keyhole Markup Language
-
Distributor
- Distributor contact
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC). Servicio Publicaciones
Distributor
- Fees
-
Hoja MAGNA en formato digital: 30 euros. A las Universidades y Organismos Públicos se les aplicará un descuento de hasta el 75% Hoja MAGNA en formato papel: 12.5 € (no existen descuentos de ningún tipo)
- Distributor format
-
Name Version Digital Map: SHP - ArcView ShapeFile
-
Digital Map: PDF - Portable Document Format
-
Digital Map: ARCC - Coverage of Arc-Info
-
Digital Map: ARCE - ARC/INFO Export format
-
Distributor
- Distributor contact
-
Organisation name Individual name Electronic mail address Role Centro de Documentación del Instituto Geológico y Minero de España (IGME-CSIC)
Distributor
- Distributor format
-
Name Version Paper map
-
Distributor
- Distributor contact
-
Organisation name Individual name Electronic mail address Role Área de Sistemas de Información Geocientífica del Instituto Geológico y Minero de España (IGME-CSIC)
Distributor
- Distributor format
-
Name Version Web Service: WMS - Web Map Service
1.1.1
- Units of distribution
-
Las hojas de la serie se distribuyen en hojas a escala 1:50.00 (para la Península) o 1:25.000 (para las islas). Cada una de las hojas contiene los siguiente información: Mapa Geológico, Mapa Geomorfológico (tan solo en 1/3 de la serie) y Memoria explicativa
- OnLine resource
- Name
- DVD
- Hierarchy level
- Dataset
Conformance result
- Title
-
Specifications for digitizing geological mapping MAGNA
- Date (Revision)
- 2012-02-01
- Explanation
-
Consult the regulations
- Pass
- Yes
Conformance result
- Date (Publication)
- 2010-12-08
- Explanation
-
See refered specification
- Pass
- No
Conformance result
- Title
-
Specifications for digitizing geological mapping MAGNA
- Date (Revision)
- 2012-02-01
- Explanation
-
Consult the regulations
- Pass
- Yes
- Statement
-
The realization of this geological cartography is based on the geological information from the incomplete Geological Map of Spain scale 1: 50,000 (first series). In addition it collects and analyzes other information concerning the area and its environment, including bases and other topographic mapping and related work as singular projects, doctoral dissertations, etc.
The next step is the collection of data and samples for later study. After the transfer of field work to map, photo-interpretation work supported, and the final composition of the geological map.
This cartography is completed with the elaboration of the text of memory and organization and classification of additional information.
The digitization of the geological mapping information and normalization is in accordance with the Rules of digitization and Normalization defined by the IGME. Supervision, correction and validation also follow the procedure of digital mapping Review Institute. It consists of automatic controls error detection and correction, and thorough visual checks.
Finally cartographic composition and symbolized files (.lyr) in ArcGIS is performed.
- Description
-
Search, collection and analysis of previous information: bibliographic information, topographic base and digital terrain model, Geological Map of Spain 1: 50.000, First Series, aerial photographs and satellite images and other maps and previous documents.
- Description
-
Fieldwork: previous photo interpretation, verification and data collection in the field, sampling, re-photo interpretation and elaboration of the provisional map on the topographical base.
- Description
-
Realization of maps and Memory: drafting and drawing the final map. Study of analytical data. Elaboration of the text from memory. Collecting and organizing additional information.
- Description
-
Digitalization process : inventory, selection and encoding of the phenomena that comprise digital mapping. Digitization according to the specifications of the Institute. geometric treatment. Association attributes space objects and creating tables. Check digital information, error detection and correction. Verification of consistency between different digital maps.
- Description
-
Se representan los materiales o rocas que aparecen en la superficie de la hoja, su distribución espacial, naturaleza y relaciones geométricas. Las unidades cartográficas son agrupaciones con litología y edad común formadas por estratos u otras rocas no estratificadas como los granitos. Las relaciones estructurales entre ellas se expresan mediante símbolos lo que otorga al mapa un carácter tridimensional que se completa con perfiles geológicos adicionales que son la expresión gráfica de su geometría en profundidad. Mediante simbología se añade información, alguna de carácter aplicado tal como puntos de agua, yacimientos e indicios minerales. Esta información aplicada es muy importante en la Serie.
- Denominator
- 50000
- Title
-
Mapa Geológico de España a escala 1:50.000 MAGNA (Primera Serie)
- Date (Publication)
- 2500-01-01
- Cited responsible party
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Originator Instituto Geológico y Minero de España (IGME-CSIC)
Distributor
- Presentation form
- Hardcopy document
- Presentation form
- Hardcopy map
Metadata
- File identifier
- ESPIGMEMAGNA502016052420116-1 XML
- Metadata language
- Spanish; Castilian
- Character set
- UTF8
- Parent identifier
-
ESPIGMEMAGNA502010072320000
ESPIGMEMAGNA502010072320000
- Hierarchy level
- Dataset
- Hierarchy level name
-
Hoja 1 del Mapa Geológico de España Escala 1:50.000, MAGNA
- Date stamp
- 2025-04-04T10:18:04.563628Z
- Metadata standard name
-
Reglamento (CE) Nº 1205/2008 de Inspire, "Perfil IGME"
- Metadata standard version
-
TG 2.0
- Metadata author
-
Organisation name Individual name Electronic mail address Role Instituto Geológico y Minero de España (IGME-CSIC)
Leticia vega Martín
Point of contact
- Other language
-
Language Character encoding English UTF8 Spanish; Castilian UTF8
)))
