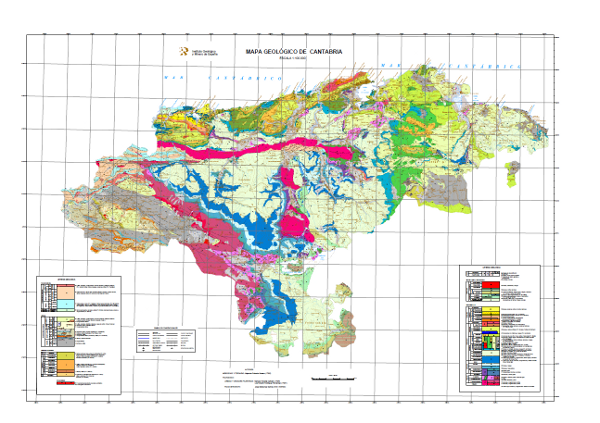

Geological Map of Cantabria at scale 1:100.000

Map showing the chronolithostratigraphic units of the area covered by the sheet separated by different types of contacts: normal or concordant, discordant, intrusive and other. The tectonic structure is represented by the cartographic traces of folds, the orientation and dip of planar and linear elements contained in the rocks, as well as by the structural relationship - by means of faults and thrusts - between the rock assemblages differentiated cartographically. The map is accompanied by the lithostratigraphic legend and conventional signs.

Simple

Alternate title

GeoCantabria 100
Date (Creation)
1989-01-01
Date (Publication)
1990-01-01
Edition

1ª Edición
Edition date
1990-01-01
Citation identifier
11288

Presentation form
Digital map
Presentation form
Hardcopy document
Presentation form
Hardcopy map
Purpose

The Geological-Mining Map of Cantabria has been carried out under the Technical Assistance Framework Agreement dated 29th March 1984 signed between the Geological Survey of Spain (IGME) and the Regional Council of Cantabria.

The general objective is to provide joint and continuous geological information on the Community of Cantabria for regional planning in aspects related to geological resources, geological risks, environmental protection and communications networks. Specifically, this map has been drawn up to analyse, frame and represent the mineral and energy resources of the Region.

Credit

It has been carried out under the supervision of the Mining and Energy Resources Service of the Department of Tourism, Transport and Communications and Industry of the Regional Council of Cantabria, by the Geological Survey of Spain (IGME), under the framework agreement for technical assistance between the two institutions in 1984.



Authors: Mesozoic and Tertiary: Alejandro Robador Moreno

Palaeozoic:

Liebana and Palencia Units: Nemesio Heredia Carballo

L. Roberto Rodríguez Fernández

Picos de Europa: Jorge Manríquez García (Univ. Oviedo)

Status
Completed
Point of contact
Organisation name Individual name Electronic mail address Role

Instituto Geológico y Minero de España (IGME-CSIC)

Robador Moreno, Alejandro

a.robador@igme.es

Point of contact
Maintenance and update frequency
Not planned

IGME Thesaurus

  • General geology

  • General geology.geology

  • General geology.litology

  • Structural geology.fault

  • General geology.rock

  • Stratigraphy

  • Chronostratigraphy

  • Rock

  • Sedimentary rock

  • Systematics of metamorphic rocks.metamorphic rock

  • Crystalline rock

  • Igneous rock

  • Quaternary Geomorphology and Geology

  • Surface formation

  • Structural geology

  • Folding

  • Systematics of stratigraphy

  • Silurian

  • Devonian

  • Carboniferous

  • Mesozoic

  • Triassic

  • Jurassic

  • Cretaceous

  • Neogene

  • Quaternary

CEOLocation

  • COUNTRIES.SPAIN
Keywords

  • Spain

  • Cantabria

GEMET

  • NATURAL ENVIRONMENT, ANTHROPIC ENVIRONMENT

  • LITHOSPHERE (soil, geological processes)

  • lithosphere

  • rocKs

  • HUMAN ACTIVITIES AND PRODUCTS, EFFECTS ON THE ENVIRONMENT

  • RESOURCES (resource use)

  • resources

  • natural resources

  • mineral resources
GEMET - INSPIRE themes, version 1.0
Spatial scope
Keywords
    Access constraints
    Other restrictions
    Other constraints
    Sin limitaciones al acceso público.
    Use constraints
    Other restrictions
    Other constraints

    LICENCE OF USE: Conditions of public use and dissemination of information for the re-use of IGME data. http://www.igme.es/Ayuda/CondiUso.htm

    Title

    Geological Map of Spain at a scale of 1:50.000, MAGNA
    Date (Revision)
    1991-01-01
    Cited responsible party
    Organisation name Individual name Electronic mail address Role

    Instituto Geológico y Minero de España (IGME-CSIC)

         		Point of contact
    Aggregate Datasetindentifier
    20000
    Association Type
    Larger work citation
    Spatial representation type
    Vector
    Denominator
    100000
    Language
    Spanish; Castilian
    Character set
    8859 Part 1
    Description

    Cantabria
    N
    S
    E
    W
    thumbnail




    Supplemental Information

    Only the geological-mining map of Cantabria is available in digital format. In the paper version, it is accompanied by two more maps, one of metallic and energy minerals and the other of industrial rocks and minerals.

    The report of the project for the elaboration of the three maps has also been published. It contains three descriptive and differentiated sections on the geology, metallic and energy minerals and industrial rocks and minerals of Cantabria. It also includes three annexes with lists of metallic and energetic mineral traces, of exploitations and traces of industrial minerals and rocks and of exploitations and traces of industrial minerals and rocks by substances and uses.

    The map and the report can be consulted through the Documentation Centre.

    Unique resource identifier
    EPSG:23030
    Unique resource identifier
    EPSG:6230
    Unique resource identifier
    EPSG:4258
    Distribution format
    Name Version

    Mapa digital: SHP - ArcView ShapeFile

    8.2

    Mapa digital: ARCC - Coverage of Arc-Info

    8.2

    Mapa digital: ARCE - ARC/INFO Export format

    8.2

    Mapa digital: PDF - Portable Document Format

    Unknown

    Mapa en papel

    -

    Servicio web: WMS - Web Map Service

    1.3.0

    Distributor

    Distributor contact
    Organisation name Individual name Electronic mail address Role

    Instituto Geológico y Minero de España (IGME-CSIC)

    cartografiadigital@igme.es

    		Distributor
    Distributor format
    Name Version

    Mapa digital: SHP - ArcView ShapeFile

    8.2

    Mapa digital: ARCC - Coverage of Arc-Info

    -

    Mapa digital: ARCE - ARC/INFO Export format

    -

    Mapa digital: PDF - Portable Document Format

    -

    Distributor

    Distributor contact
    Organisation name Individual name Electronic mail address Role

    Centro de Documentación del Instituto Geológico y Minero de España (IGME-CSIC)

    documentacion@igme.es

    		Distributor
    Distributor format
    Name Version

    Mapa en papel

    ---

    Distributor

    Distributor contact
    Organisation name Individual name Electronic mail address Role

    Vicedirección Técnica de Sistemas de Información Geológica del Instituto Geológico y Minero del España (IGME-CSIC)

    cartografiadigital@igme.es

    		Distributor
    Distributor format
    Name Version

    Servicio web: WMS - Web Map Service

    1.3.0
    OnLine resource
    Protocol Linkage Name

    OGC:WMS-1.3.0-http-get-capabilities

         		https://mapas.igme.es/gis/services/Cartografia_Geologica/IGME_GeologicoCantabria_100/MapServer/WMSServer?service=wms&request=getcapabilities&version=1.3.0

    Link to the GetCapabilities of the web service hosting the product

    WWW:LINK-1.0-http--related

         		https://mapas.igme.es/Servicios/default.aspx#IGME_GeologicoCantabria_100

    Link to the product page on the IGME web site
    Name
    CDROM
    Hierarchy level
    Dataset

    Completeness commission

    Name of measure

    Duplicated phenomena
    Measure description

    Geometric and topological control using the tools of the GIS application.

    Conformance result

    Title

    Geometric and topological control using the tools of the GIS application.
    Date (Revision)
    1990-01-01
    Explanation

    Error rate 0 %
    Pass
    Yes

    Completeness omission

    Name of measure

    Lack of phenomena
    Measure description

    Visual spot check and cross-checking of spatial information with attribute tables.

    Conformance result

    Title

    Visual spot check and cross-checking of spatial information with attribute tables.
    Date (Revision)
    1990-01-01
    Explanation

    Digital comparative validation and visual comparative check of the original map and the digitised map. Validation with error rate < 1%.

    Pass
    Yes

    Conceptual consistency

    Name of measure

    Degree of approximation of the digital data with the conceptual model. Distribution of phenomena in classes.
    Measure description

    Manual verification

    Conformance result

    Title

    MAGNA geological mapping data model in digital format.
    Date (Revision)
    2012-02-01
    Explanation

    Check that the digital information is consistent with the standards that conceptually define it. Consult the standard
    Pass
    Yes

    Conceptual consistency

    Name of measure

    Degree of approximation of the digital data with the conceptual model. Properties of the phenomena
    Measure description

    Automatic verification

    Conformance result

    Title

    MAGNA geological mapping data model in digital format.
    Date (Publication)
    2012-02-01
    Explanation

    Check that the digital information is consistent with the standards that conceptually define it. Consult the standard.
    Pass
    Yes

    Conceptual consistency

    Name of measure

    Existence of codes outside the established range for each attribute.
    Measure description

    Automatic verification

    Conformance result

    Title

    Especificaciones para la digitalización de la cartografía geológica MAGNA.
    Date (Revision)
    2012-02-01
    Explanation

    Check that the digital information is consistent with the standards that conceptually define it. Consult the standard
    Pass
    Yes

    Format consistency

    Name of measure

    Degree of approximation of the data to the established physical structure.
    Measure description

    Automatic verification

    Conformance result

    Title

    Specifications for the digitisation of MAGNA geological mapping.
    Date (Revision)
    2012-02-01
    Explanation

    Check that the digital information is in accordance with the standards. Consult the standard.
    Pass
    Yes

    Format consistency

    Name of measure

    Degree of conformity of the data to the defined topological rules. Absence of geological contacts with any of their ends (nodes) not connected to another node of another contact, a fault or a conventional boundary.

    Measure description

    Automatic verification

    Conformance result

    Title

    MAGNA geological mapping data model in digital format.
    Date (Revision)
    2012-02-01
    Explanation

    Check that the digital information is in accordance with the standards. Consult the standard.
    Pass
    Yes

    Format consistency

    Name of measure

    Degree of conformity of the data to the defined topological rules. Absence of geological contacts separating enclosures belonging to the same cartographic unit.

    Measure description

    Automatic verification

    Conformance result

    Title

    MAGNA geological mapping data model in digital format.
    Date (Revision)
    2012-02-01
    Explanation

    Check that the digital information is in accordance with the standards. Consult the standard.
    Pass
    Yes

    Absolute external positional accuracy

    Name of measure

    External absolute accuracy
    Measure description

    Mean square error in the registration of the map to be digitised.

    Conformance result

    Title

    Mean square error in the registration of the map to be digitised.
    Date (Revision)
    1990-01-01
    Explanation

    Mean square error in the registration of the map to be digitised.
    Pass
    Yes

    Thematic classification correctness

    Name of measure

    Mean square error in the registration of the map to be digitised.
    Measure description

    Mean square error in the registration of the map to be digitised.

    Conformance result

    Title

    Mean square error in the registration of the map to be digitised.
    Date (Revision)
    1990-01-01
    Explanation

    Mean square error in the registration of the map to be digitised.
    Pass
    Yes

    Thematic classification correctness

    Name of measure

    Mean square error in the registration of the map to be digitised.
    Measure description

    Comparative study with original map.

    Conformance result

    Title

    Comparative study with original map.
    Date (Revision)
    1990-01-01
    Explanation

    Mean square error in the registration of the map to be digitised.
    Pass
    Yes

    Non quantitative attribute accuracy

    Name of measure

    Mean square error in the registration of the map to be digitised.
    Measure description

    Mean square error in the registration of the map to be digitised.

    Conformance result

    Title

    Mean square error in the registration of the map to be digitised.
    Date (Revision)
    1990-01-01
    Explanation

    Mean square error in the registration of the map to be digitised.
    Pass
    Yes

    Conformance result

    Title
    Reglamento (UE) n o 1089/2010 de la Comisión de 23 de noviembre de 2010 por el que se aplica la Directiva 2007/2/CE del Parlamento Europeo y del Consejo en lo que se refiere a la interoperabilidad de los conjuntos y los servicios de datos espaciales
    Date (Publication)
    2010-12-08

    Citation identifier

    No information provided.
    Explanation

    Consult the regulations
    Pass
    No
    Statement

    Map made mainly on the information reflected in the National Geological Map at a scale of 1:50.000 (second series), MAGNA with the incorporation of data from doctoral theses and unpublished works.

    Digitisation carried out in 2002. Normalisation and generation of symbolised files (.lyr) and cartography, in version 8.2 of ArcGIS, in 2003..

    Description

    Compilation and analysis of previous information:

    Compilation of MAGNA geological information and of work carried out in the area covered by the sheet carried out subsequent to the MAGNA sheets.

    Description

    Production of the map:

    Study of the cartographic units and revision of the samples.

    Preparation of the legend Correlation between the cartographic units of the MAGNA sheets and the chronolithostratigraphic legend of the 1:100,000 scale map.

    Spatial adjustment between sheet boundaries.

    Adjustment to the selected topographic base.

    Drawing of the geological map at a scale of 1:100.000.

    Description

    Process of digitalisation of the information:

    Analysis of the entities present in the cartography. Assignment of codes.

    Digitisation of geological contacts and faults. Generation of the enclosures that constitute the cartographic units. Digitisation of the rest of the geological entities. Digitisation of the chronolithostratigraphic legend.

    Error control and correction.

    Description

    The rock units of the sheet separated by different types of contacts are represented, together with the tectonic structure, faults and map traces of folds, the orientation and dip of planar and linear elements contained in the rocks, structural and textural singularities of igneous and metamorphic rocks, water points, mineral deposits and indications, presence of fossils and other elements of punctual representation..

    Denominator
    50000
    Title

    Geological Map of Spain scale 1:50.000 MAGNA (Second series 1st edition)
    Date (Revision)
    1991-01-01
    Cited responsible party
    Organisation name Individual name Electronic mail address Role

    Instituto Geológico y Minero de España (IGME-CSIC)

    publicaciones@igme.es

    		Originator

    Instituto Geológico y Minero de España (IGME-CSIC)

    publicaciones@igme.es

    		Distributor
    Presentation form
    Hardcopy map
    Presentation form
    Digital map
    Presentation form
    Hardcopy document
    Presentation form
    Digital document

    Metadata

    File identifier
    ESPIGMEGEOCANTABRIA1002010090211288 XML
    Metadata language
    Spanish; Castilian
    Character set
    UTF8
    Hierarchy level
    Dataset
    Date stamp
    2025-05-09T07:21:03.826491Z
    Metadata standard name

    Reglamento (CE) Nº 1205/2008 de Inspire, "Perfil IGME"
    Metadata standard version

    TG 2.0
    Metadata author
    Organisation name Individual name Electronic mail address Role

    Instituto Geológico y Minero de España (IGME-CSIC)

    Leticia Vega Martín

    l.vega@igme.es

    		Point of contact
    Other language
    Language Character encoding
    English UTF8
    Spanish; Castilian UTF8



    Overviews

    overview
    large_thumbnail

    Spatial extent

    thumbnail

    Keywords

    GEMET

    HUMAN ACTIVITIES AND PRODUCTS, EFFECTS ON THE ENVIRONMENT LITHOSPHERE (soil, geological processes) NATURAL ENVIRONMENT, ANTHROPIC ENVIRONMENT RESOURCES (resource use) lithosphere mineral resources natural resources resources rocKs
    GEMET - INSPIRE themes, version 1.0

    Geology
    IGME Thesaurus

    Carboniferous Chronostratigraphy Cretaceous Crystalline rock Devonian Folding General geology General geology.geology General geology.litology General geology.rock Igneous rock Jurassic Mesozoic Neogene Quaternary Quaternary Geomorphology and Geology Rock Sedimentary rock Silurian Stratigraphy Structural geology Structural geology.fault Surface formation Systematics of metamorphic rocks.metamorphic rock Systematics of stratigraphy Triassic


    Provided by

    Access to the catalogue
